KM III

Tack product

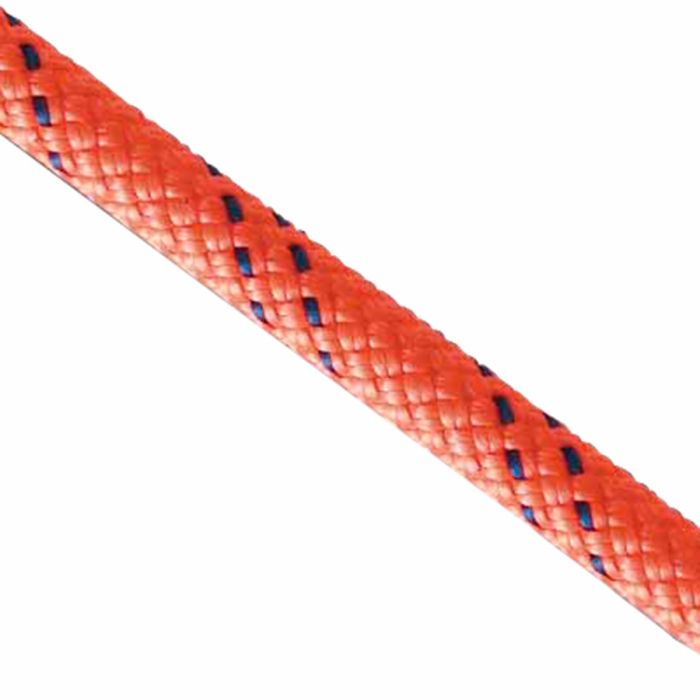

KM III from TEUFELBERGER is a fiber rope which can be used as extra firm rope reins.

Color Images

  • Black

  • Blue

  • Camo

  • Orange

  • Red

  • Safety Green

  • White

Our fiber rope KM III fibre rope has a kernmantle construction with a nylon core and a durable polyester cover.

Features: Premium quality rope that has great hand and is never too soft and reduces "bunching."

Applications: Extra firm rope reins

Characteristics:

  • Colors Available: Black
  • Lengths Available: 600

Material specifications:

  • Sunlight/UV: Very little degradation from sunlight. Can be used outside over long term if inspected regularly.
  • Chemicals: Nylon will degrade with strong oxidizing agents, mineral acids, and 90% formic acid. May discolor when exposed to high levels of carbon dioxide. Polyester has good resistance to most chemicals, except 95% sulfuric acid and strong alkalines at boil.
  • Heat: Nylon melts at 460°F with progressive strength loss above 300°F. Polyester melts at 480°F with progressive strength loss above 300°F.
  • Dielectrics: Good resistance to the passage of electrical current. However, dirt, surface contaminants, water entrapment, and the like can significantly affect dielectric properties. Extreme caution should be exercised any time a rope is in the proximity of live circuits.
  • Sheaves: N/A
  • Working loads: No blanket safe working load (SWL) recommendations can be made for any line because SWL's must be calculated based on application, conditions of use, and potential danger to personnel among other considerations. It is recommended that the end user establish working loads and safety factors based on best practices established by the end user's industry; by professional judgment and personal experience; and after thorough assessment of all risks. The SWL is a guideline for the use of a rope in good condition for non-critical applications and should be reduced where life, limb, or valuable property is involved, or in cases of exceptional service such as shock loading, sustained loading, severe vibration, etc. The Cordage Institute specifies that the SWL of a rope shall be determined by dividing the Minimum Tensile Strength of the rope by a safety factor. The safety factor ranges from 5 to 12 for non-critical uses and is typically set at 15 for life lines.
Diameter
[inch]
Diameter
[mm]
Weight
[lbs/100']
Weight
[g/m]
Tensile
[lbs]
Tensile
[kg]
Static elongation
[%]
Classification
7/16" 10.50 5.80 86.30 8,000 3,632 2.9 @ 1.35 kN (300 lbf), 5.1 @ 2.70 kN (600 lbf), 8.0 @ 4.40 kN (1000 lbf) -
1/2" 12 7.90 117.50 10,000 4,540 2.7 @ 1.35 kN (300 lbf), 4.6 @ 2.70 kN (600 lbf), 6.8 @ 4.40 kN (1000 lbf) -
5/8" 15 10.20 151.70 11,000 4,994 2.0 @ 1.35 kN (300 lbf), 3.6 @ 2.70 kN (600 lbf), 5.4 @ 4.40 kN (1000 lbf) -
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
