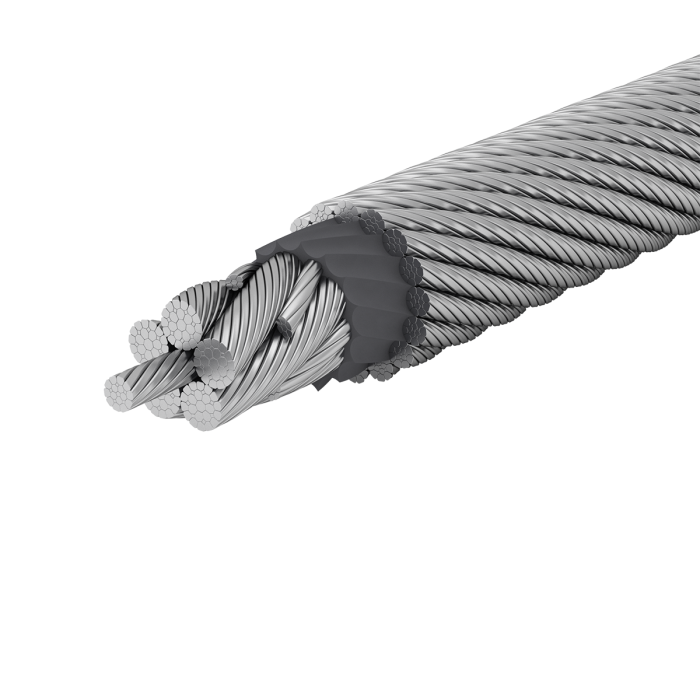

EVOLUTION TK18
hoist rope, rotation-resistantHighest crushing resistance
The EVOLUTION TK18 is Teufelberger-Redaellis's high-performance rope for deep foundation equipment, mainly for brutally harsh conditions.
Specifications
— Ordinary lay or lang lay, right or left lay
— 16xK17F-EPIWRC(K), RCN 27
✔ Multilayer Spooling
✔ SUPERFILL®
✔ PLASTFILL®
EVOLUTION TK18 is your best choice for though environmental conditions and provides excellent dimensional stability, ideal lubrication, especially due to its Active Core Lubrication in combination with our PLASTFILL® technology.
- Excellent spooling characteristics
- Suitable for heavy loads – rope design starting from 44mm
- Perfect shock absorbation due to the 5-strand construction
- Highest breaking loads
| Diameter | Weight | Minimum breaking force | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 1770 N/mm² | 1960 N/mm² | 2160 N/mm² | |||||||
| [mm] | [inch] | [kg/m] | [lbs/ft] | [kN] | [lbf] | [kN] | [lbf] | [kN] | [lbf] |
| 44 | 9.31 | 6.26 | 1,607 | 361,268 | 1,779 | 399,935 | On special request. | On special request. | |
| 44.45 | 1 3/4 | 9.48 | 6.37 | 1,641 | 368,911 | 1,817 | 408,478 | On special request. | On special request. |
| 46 | 10.24 | 6.88 | 1,758 | 395,214 | 1,960 | 440,626 | On special request. | On special request. | |
| 48 | 11.12 | 7.47 | 1,914 | 430,284 | 2,119 | 476,370 | On special request. | On special request. | |
| 50 | 12.40 | 8.33 | 2,076 | 466,703 | 2,299 | 516,836 | On special request. | On special request. | |
| 50.80 | 2 | 12.98 | 8.72 | 2,143 | 481,766 | 2,374 | 533,696 | On special request. | On special request. |
| 52 | 13.61 | 9.15 | 2,246 | 504,921 | 2,487 | 559,100 | On special request. | On special request. | |
| 54 | 2 1/8 | 14.48 | 9.73 | 2,422 | 544,487 | 2,682 | 602,938 | On special request. | On special request. |
| 56 | 15.28 | 10.27 | 2,605 | 585,627 | 2,884 | 648,349 | On special request. | On special request. | |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
