EVOLUTION TK16
Extreme protection against external influences

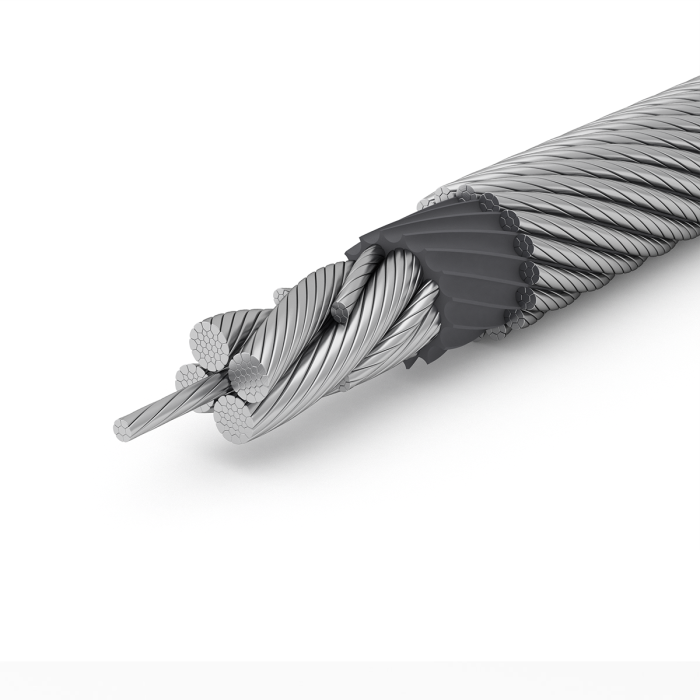

This high performance steel wire rope with its advanced design excels due to high flexibility and extreme durability.
Specifications
— Ordinary lay or lang lay, right or left lay
— 8-30 mm: 16xK6-EPIWRC(K), RCN 23-1
— 32-42 mm: 16xK7-EPIWRC(K), RCN 23-2
✔ Multilayer Spooling
✔ SUPERFILL®
✔ PLASTFILL®
For an optimum performance of the equipment, the diverse applications in the field of special deep foundation engineering such as drilling, trench cutting, grabbing, or pile driving demand a great performance of the hoist rope and are a tough challenge for the Teufelberger-Redaelli high performance steel wire ropes.
Benefits of EVOLUTION TK16:
- Extremely resistant to external environmental influences and the ingress of dirt due to PLASTFILL® insert resulting in a perfect lubrication of the inner rope
- Excellent spooling characteristics due to highest dimensional stability under lateral pressure - even in multilayer spooling operation
- Extremely high operational safety due to high breaking forces and resistance to torsion
- Long service life even in case of shock loads due to the 4-strand design of the inner rope
| Construction | Diameter | Weight | Minimum breaking force | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1770 N/mm² | 1960 N/mm² | 2160 N/mm² | ||||||||
| [mm] | [inch] | [kg/m] | [lbs/ft] | [kN] | [lbf] | [kN] | [lbf] | [kN] | [lbf] | |
| 16xK6-EPIWRC(K) | 8 | 5/16 | 0.33 | 0.22 | 56 | 12,589 | 62 | 13,938 | 64 | 14,388 |
| 16xK6-EPIWRC(K) | 9 | 0.40 | 0.27 | 71 | 15,961 | 79 | 17,760 | 81 | 18,210 | |
| 16xK6-EPIWRC(K) | 10 | 0.50 | 0.34 | 88 | 19,783 | 97 | 21,806 | 100 | 22,481 | |
| 16xK6-EPIWRC(K) | 11 | 7/16 | 0.61 | 0.41 | 106 | 23,830 | 117 | 26,303 | 121 | 27,202 |
| 16xK6-EPIWRC(K) | 12 | 0.74 | 0.50 | 126 | 28,326 | 140 | 31,473 | 144 | 32,372 | |
| 16xK6-EPIWRC(K) | 12.70 | 1/2 | 0.83 | 0.56 | 142 | 31,923 | 157 | 35,295 | 162 | 36,419 |
| 16xK6-EPIWRC(K) | 13 | 0.86 | 0.58 | 148 | 33,272 | 164 | 36,869 | 170 | 38,218 | |
| 16xK6-EPIWRC(K) | 14 | 9/16 | 1.01 | 0.68 | 172 | 38,667 | 190 | 42,714 | 197 | 44,287 |
| 16xK6-EPIWRC(K) | 15 | 1.16 | 0.78 | 197 | 44,287 | 218 | 49,008 | 231 | 51,931 | |
| 16xK6-EPIWRC(K) | 16 | 5/8 | 1.28 | 0.86 | 224 | 50,357 | 250 | 56,202 | 263 | 59,125 |
| 16xK6-EPIWRC(K) | 17 | 1.44 | 0.97 | 253 | 56,877 | 280 | 62,947 | 290 | 65,195 | |
| 16xK6-EPIWRC(K) | 18 | 1.64 | 1.10 | 284 | 63,846 | 314 | 70,590 | 333 | 74,861 | |
| 16xK6-EPIWRC(K) | 19 | 3/4 | 1.85 | 1.24 | 316 | 71,040 | 350 | 78,683 | 371 | 83,404 |
| 16xK6-EPIWRC(K) | 20 | 2.08 | 1.40 | 350 | 78,683 | 388 | 87,226 | 401 | 90,148 | |
| 16xK6-EPIWRC(K) | 21 | 2.20 | 1.48 | 387 | 87,001 | 428 | 96,218 | 444 | 99,815 | |
| 16xK6-EPIWRC(K) | 22 | 2.49 | 1.67 | 424 | 95,319 | 469 | 105,435 | 487 | 109,482 | |
| 16xK6-EPIWRC(K) | 22.23 | 7/8 | 2.54 | 1.71 | 433 | 97,342 | 479 | 107,683 | 495 | 111,280 |
| 16xK6-EPIWRC(K) | 23 | 2.72 | 1.83 | 463 | 104,087 | 513 | 115,327 | 530 | 119,149 | |
| 16xK6-EPIWRC(K) | 24 | 2.94 | 1.98 | 505 | 113,529 | 559 | 125,668 | 580 | 130,389 | |
| 16xK6-EPIWRC(K) | 25 | 3.15 | 2.12 | 546 | 122,746 | 605 | 136,009 | 639 | 143,653 | |
| 16xK6-EPIWRC(K) | 25.40 | 1 | 3.21 | 2.16 | 565 | 127,017 | 626 | 140,730 | 644 | 144,777 |
| 16xK6-EPIWRC(K) | 26 | 3.44 | 2.31 | 592 | 133,087 | 656 | 147,475 | 675 | 151,746 | |
| 16xK6-EPIWRC(K) | 27 | 3.65 | 2.45 | 638 | 143,428 | 707 | 158,940 | 725 | 162,986 | |
| 16xK6-EPIWRC(K) | 28 | 4.05 | 2.72 | 686 | 154,219 | 760 | 170,855 | 780 | 175,351 | |
| 16xK6-EPIWRC(K) | 28.57 | 1 1/8 | 4.04 | 2.71 | 715 | 160,738 | 792 | 178,049 | 814 | 182,994 |
| 16xK6-EPIWRC(K) | 29 | 4.27 | 2.87 | 737 | 165,684 | 816 | 183,444 | 835 | 187,715 | |
| 16xK6-EPIWRC(K) | 30 | 4.62 | 3.10 | 788 | 177,149 | 873 | 196,258 | 893 | 200,754 | |
| 16xK7-EPIWRC(K) | 31.75 | 1 1/4 | 44 597 | 13 575 | 883 | 198 506 | 978 | 219.863 | 1.01 | 227.057 |
| 16xK7-EPIWRC(K) | 32 | 44 839 | 15 766 | 897 | 201 654 | 993 | 223.235 | 1.035 | 232.677 | |
| 16xK7-EPIWRC(K) | 34 | 27 150 | 31 472 | 1.012 | 227.507 | 1.121 | 252.011 | 1.141 | 256.507 | |
| 16xK7-EPIWRC(K) | 35 | 1 3/8 | 44 779 | 44 808 | 1.073 | 241.22 | 1.188 | 267.073 | 1.21 | 272.019 |
| 16xK7-EPIWRC(K) | 36 | 15 128 | 11 414 | 1.135 | 255.158 | 1.257 | 282.585 | 1.277 | 287.081 | |
| 16xK7-EPIWRC(K) | 38 | 1 1/2 | 43 647 | 30 407 | 1.236 | 277.864 | 1.369 | 307.763 | 1.472 | 330.919 |
| 16xK7-EPIWRC(K) | 40 | 31 959 | 47 239 | 1.37 | 307.988 | 1.517 | 341.035 | 1.568 | 352.50 | |
| 16xK7-EPIWRC(K) | 42 | 30 529 | 34 090 | 1.51 | 339.462 | 1.672 | 375.881 | 1.729 | 388.695 | |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
