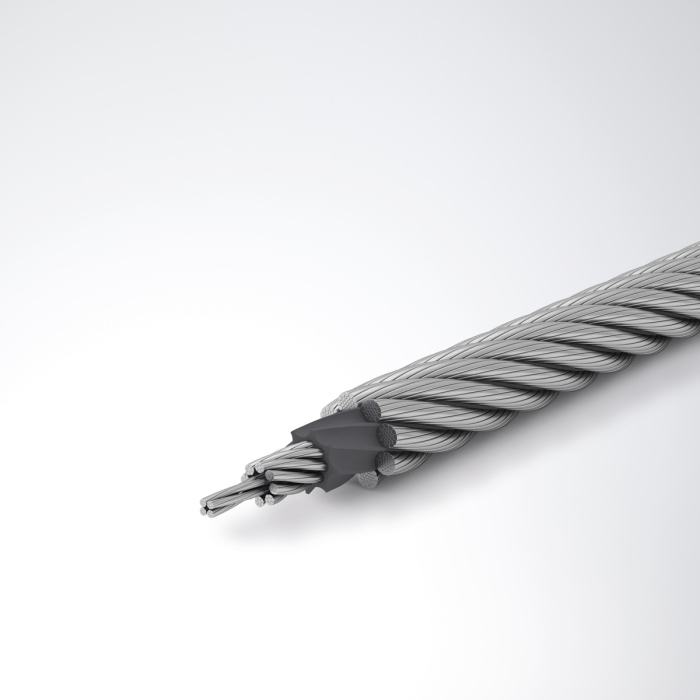

EVOLUTION Q9XT

absolutely shock load resistant

A recent development from Teufelberger-Redaelli, the Evolution Q9XT high performance steel wire rope
unleashes its full functionality especially on cranes used to handle bulk goods.

Specifications

Specifications
— Ordinary lay, right or left lay
— 20 – 54 mm: 8 x K31WS – EPIWRC, RCN 11
— Use without swivel

✔ Radial elastic core
✔ SUPERFILL®
✔ PLASTFILL®

A recent development from Teufelberger-Redaelli, the Evolution Q9XT high performance steel wire rope
unleashes its full functionality especially on cranes used to handle bulk goods. Its novel, revolutionary structure – with its 4 core strands – makes it extremely durable and long-lived.

Benefits
&emps;— Trouble-free operation: excellent absorption of shock loads due to eliminated king strand
&emps;— Extremely long lifetime: high RCN number allows a big amount of outer wire breaks
&emps;— Improved visibility of discard state from outside: four center strands reduce the risk of damage to the rope core
&emps;— Improved permanent lubrication: PLASTFILL® impregnation leads to less wear in the core

Construction Diameter
[mm]
Diameter
[inch]
Weight
[kg/m]
Weight
[lbf/ft]
Minimum breaking force at rope grade 1770 N/mm2
[kN]
Minimum breaking force at rope grade 1770 N/mm2
[lbs]
Minimum breaking force at rope grade 1960 N/mm2
[kN]
Minimum breaking force at rope grade 1960 N/mm2
[lbs]
8xK31WS-EPIWRC(K) 20 1.82 1.22 311 70,004 345 77,519
8xK31WS-EPIWRC(K) 22 2.20 1.48 377 84,705 417 93,798
8xK31WS-EPIWRC(K) 22.23 7/8 2.24 1.51 385 86,447 426 95,726
8xK31WS-EPIWRC(K) 24 2.62 1.76 448 100,806 497 111,627
8xK31WS-EPIWRC(K) 25 2.84 1.91 487 109,382 539 121,123
8xK31WS-EPIWRC(K) 25.40 1 2.93 1.97 502 112,910 556 125,030
8xK31WS-EPIWRC(K) 26 3.07 2.06 526 118,307 583 131,007
8xK31WS-EPIWRC(K) 28 3.56 2.39 610 137,208 676 151,937
8xK31WS-EPIWRC(K) 28.58 1 1/8 3.71 2.49 636 142,902 704 158,241
8xK31WS-EPIWRC(K) 30 4.09 2.75 701 157,510 776 174,418
8xK31WS-EPIWRC(K) 31.75 1 1/4 4.58 3.08 785 176,422 869 195,360
8xK31WS-EPIWRC(K) 32 4.65 3.12 797 179,211 883 198,448
8xK31WS-EPIWRC(K) 34 5.25 3.53 900 202,312 997 224,030
8xK31WS-EPIWRC(K) 36 5.88 3.95 1,009 226,814 1,117 251,161
8xK31WS-EPIWRC(K) 38 1 1/2 6.56 4.41 1,124 252,716 1,245 279,843
8xK31WS-EPIWRC(K) 40 7.26 4.88 1,246 280,017 1,379 310,076
8xK31WS-EPIWRC(K) 42 8.01 5,.38 1,373 308,719 1,521 341,858
8xK31WS-EPIWRC(K) 44 8.79 5.91 1,507 338,821 1,669 375,191
8xK31WS-EPIWRC(K) 44.45 1 3/4 8.97 6.03 1,538 345,787 1,703 382,905
8xK31WS-EPIWRC(K) 46 9.61 6.46 1,647 370,323 1,824 410,075
8xK31WS-EPIWRC(K) 48 10.46 7.03 1,794 403,225 1,986 446,509
8xK31WS-EPIWRC(K) 50 11.35 7.63 1,946 437,527 2,155 484,493
8xK31WS-EPIWRC(K) 50.80 2 11.72 7.87 2,009 451,640 2,225 500,121
8xK31WS-EPIWRC(K) 52 12.28 8.25 2,105 473,229 2,331 524,028
8xK31WS-EPIWRC(K) 54 2 1/8 13.24 8.90 2,270 510,331 2,514 565,113
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
