EVOLUTION Q810V

Countless bendings

Optimizes the absorption of shock loads, knocks and vibrations due to its especially developed rope construction with the 4-strand core.

Specifications

Specifications

— Ordinary lay, right or left lay
— 12 – 32 mm: 8 x 26WS – EPIWRC, RCN 09
— Use without rope swivel

✘ Multilayer spooling
✘ SUPERFILL®
✔ PLASTFILL®

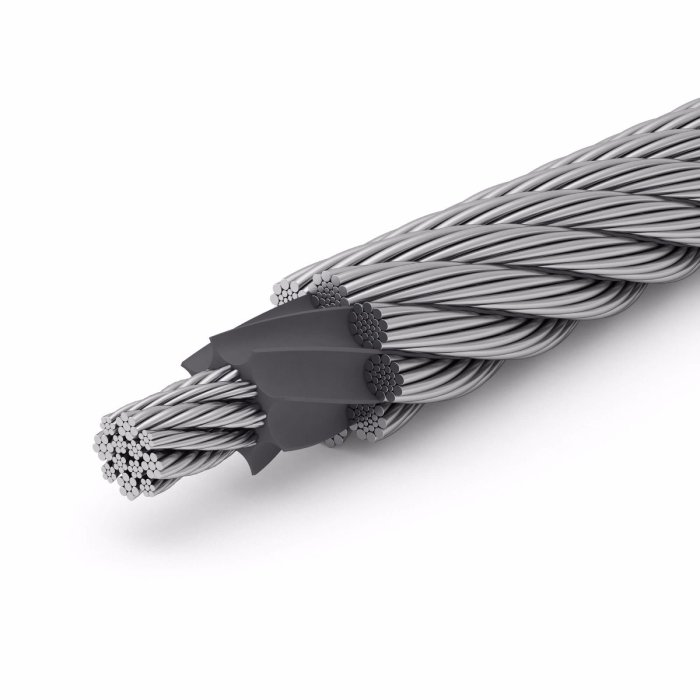

Optimizes the absorption of shock loads, knocks and vibrations due to its especially developed rope construction with the 4-strand core. The PLASTFILL® insert provides permanent lubrication of the steel core and results in an extremely long service life

Benefits
&emps;— Optimized absorption of shock loads, impacts and vibrations:
no core protrusion because of special steel core
&emps;— Outstanding bending fatigue resistance: enabled by uncompacted rope design
&emps;— Perfect fit on complex reeving systems: excellent resistance against short bending cycles and counter-bendings

Construction Diameter
[mm]
Diameter
[inch]
Weight
[kg/m]
Weight
[lbf/ft]
Minimum breaking force at rope grade 1770 N/mm2
[kN]
Minimum breaking force at rope grade 1770 N/mm2
[lbs]
Minimum breaking force at rope grade 1960 N/mm2
[kN]
Minimum breaking force at rope grade 1960 N/mm2
[lbs]
8x26WS-EPIWRC 12 0.62 0.42 105 23,605 116 26,078
8x26WS-EPIWRC 14 0.82 0.55 140 31,473 155 34,845
8x26WS-EPIWRC 16 ⁵/8 1.09 0.73 188 42,264 208 46,760
8x26WS-EPIWRC 18 1.35 0.91 230 51,706 253 56,877
8x26WS-EPIWRC 20 1.68 1.13 281 63,171 311 69,916
8x26WS-EPIWRC 22 7/8 2.00 1.34 349 78,458 386 86,776
8x26WS-EPIWRC 24 2.41 1.62 413 92,846 457 102,738
8x26WS-EPIWRC 26 2.82 1.89 483 108,583 535 120,273
8x26WS-EPIWRC 28 3.28 2.20 569 127,916 630 141,630
8x26WS-EPIWRC 30 3.67 2.47 628 141,180 695 156,242
8x26WS-EPIWRC 32 1 1/4 4.39 2.95 729 163,886 807 181,421
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
