Endura 12

High strength, lightweight and durable fiber rope for any commercial marine application

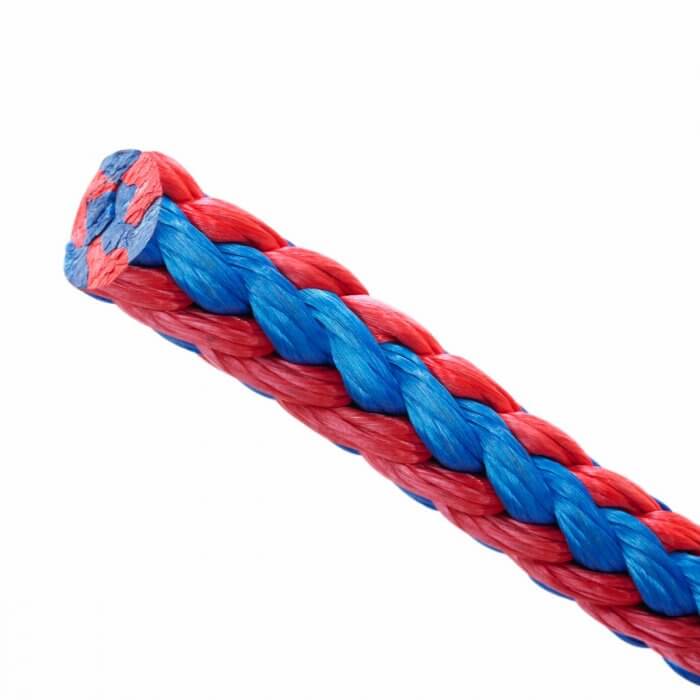

Endura 12 is very high strength, low stretch, ultra-low creep line comprised of high molecular weight polyethylene fiber in a 12-strand construction.

Color Images

  • Blue

  •  Gray

  • Green

  •  Red

  • White

Endura 12 is very high strength, low stretch, and has low creep. It utilizes the latest ultra high molecular weight polyethylene fiber in a 12-strand construction.  This high tech fiber and construction provides an extremely high strength, light weight rope that is non-rotational and easily spliced. Endura 12 is ideally suited for wire rope replacement applications where size, strength, and stretch are the main design considerations.

All Endura 12 ropes come with TEUFELBERGER’s proprietary abrasion resistant coating that is specially formulated to yield higher strength and more durable and

water-resistant lines.

Features:

  • Excellent abrasion resistance
  • Easy to inspect
  • Maximum strength to weight ratio
  • Extremely low stretch
  • Easy to splice
  • Floats
  • UV stable

Our Endura 12 can be used for following applications:

  • Replacement for steel cable
  • Tug boat tow lines
  • Face and wing wires
  • Winch lines
  • Tug pendant and main line
  • Helicopter long lines
  • Underground pulling lines
  • Slings
  • Trawl line
  • Wire rope replacement
Diameter
[mm]
Diameter
[inch]
Circumference Weight
[g/m]
Weight
[lbf/100']
Min. breaking strength
[lbf]
Avg. Breaking strength
[lbf]
2.80 7/64 5/16 4.16 0.28 1,870 2,200
6 1/4 3/4 25.30 1.00 7,950 9,700
8 5/16 1.00 34.20 2.55 13,300 14,500
10 3/8 1 1/8 50.60 3.40 16,800 1,800
11 7/16 1 1/4 59.50 4.20 22,200 24,000
12 1/2 1 1/2 87.80 6.15 32,100 34,300
14 9/16 1 3/4 102.70 7.20 39,500 42,000
16 5/8 2 135.40 10.10 50,800 58,000
18 3/4 2 1/4 219.30 14.74 58,000 67,000
22 7/8 2 3/4 272.30 18.80 85,000 97,500
24 1.00 3 348.10 23.40 98,100 114,000
28 1 1/8 3 1/2 461.20 31 133,000 148,000
30 1 1/4 3 3/4 544.50 36.60 149,000 171,000
33 1 5/16 4 602.60 40.50 166,000 190,000
34 1 3/8 4 1/8 675.50 45.40 185,000 212,000
36 1 1/2 4 1/2 726 48.80 205,000 228,000
40 1 5/8 5 958.10 64.40 255,000 283,000
42 1 3/4 5 1/2 1,041.50 70 302,000 335,000
48 2 6 1,223 82.20 343,000 381,000
56 2 1/4 7 1,703.50 114.50 483,000 537,000
60 2 1/2 7 1/2 1,913.30 128.60 529,000 588,000
64 2 5/8 8 2,282.30 153.40 596,000 675,000
72 3 9 2,816.40 189.30 749,000 856,000
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
