DuraTEN

Fiber rope for vehicle winches

The high strength vehicle winch rope DuraTEN made of UHMWPE features high breaking forces, good bending fatigue strength and a very long service life.

Specifications

Diameter: 5-16 mm
Cover: optionally with or without PES cover
Core: UHMWPE (Dyneema®), not stretched
Colors:

  • Cover: various colors and/or color combinations possible
  • Core: dark gray

Our universally applicable high strength fiber rope for vehicle winches consists of UHMWPE fibers and can be fabricated either with or without PES cover.

The benefits of this vehicle winch rope are:

  • 1/7 of the weight of comparable steel wire ropes
  • Extremely high breaking force - comparable with the breaking force of a steel wire rope of the same diameter
  • No corrosion and/or soiling caused by rope grease
  • No danger of injury, easy and quick handling
  • Flexible design
  • Very high abrasion resistance, especially when provided with cover
  • High bending fatigue strength and long service life
  • The kinetic energy released on rope damage is considerably lower than in case of steel wire ropes.

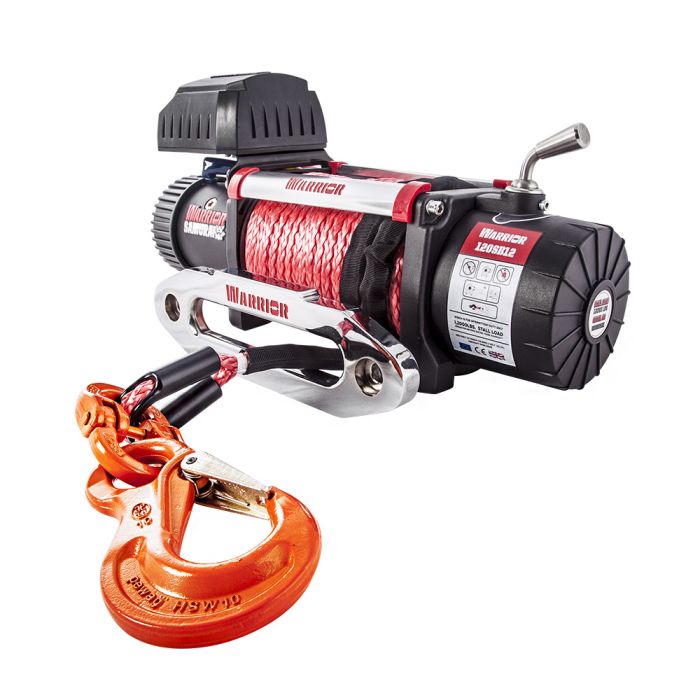

DuraTEN is used in vehicle winches. It is especially suited when applied as fiber rope for

  • Offroad vehicles,
  • Maintenance vehicles, and
  • Recovery vehicles and military vehicles


Offroad vehicles

Our DuraTEN is ideally suited for:

  • Hobby users and
  • Semi-professional users


Of course, the DuraTEN winch rope is available in various versions, for example:

  • Provided with stainless steel or tubular thimble
  • Featuring sliding protective tubes of polyester for rope spots that are subjected to high thermal and mechanical stress
  • With mounting aid
  • Customized branding possible


Our portfolio includes the following accessories for the offroad sector:

  • Different safety hooks
  • Textile shackles
  • Rope extensions
  • Connecting links

Shoft ShakleRope ExtensionduraTEN mit Haken und KauschePolyester protective hose


Maintenance vehicles

Our fiber rope DuraTEN can be used without adaptation on almost all steel wire rope winches available in the market.


DuraTEN is available in various versions, for example:

  • Provided with stainless steel or tubular thimble
  • Featuring sliding protective tubes of polyester for rope spots that are subjected to high thermal and mechanical stress
  • With mounting aid
  • Customized branding possible


For maintenance vehicles, our portfolio includes the following accessories for our DuraTEN:

  • Different safety hooks
  • Connecting links

Utility Winch

Recovery vehicles and military vehicles

Our fiber rope DuraTEN can be used without adaptation on almost all steel wire rope winches available in the market.


DuraTEN is available in various versions:

  • Provided with stainless steel or tubular thimble
  • Featuring sliding protective tubes of polyester for rope spots that are subjected to high thermal and mechanical stress
  • With mounting aid
  • Customized branding possible
  • The rope, hooks and thimbles are also available in special color black.


In this field, our range includes the following accessories for DuraTEN:

  • Different safety hooks
  • Connecting links

DuraTEN für Berge- und Militärfahrzeuge

DuraTEN Rope-Diameter
[mm]
DuraTEN Weight
[g/m]
DuraTEN Pro-P Core-Diameter
[mm]
DuraTEN Pro-P Rope-Diameter
[mm]
DuraTEN Pro-P Weight
[g/m]
DuraTEN / DuraTEN Pro Min. breaking strength, free length
[kN]
5 15 5 7 30 21
6 20 6 8 40 35
7 27 7 9 56 43
8 34 8 10 65 55
9 44 9 11 78 72
10 54 10 12 88 85
11 65 11 13 104 107
12 76 12 15 130 125
14 107 14 17 183 160
16 144 16 20 250 220
18 219 18 24 384 258
22 272 22 28 470 378
24 348 24 30 581 436
26 388 26 32 655 500
28 461 28 34 780 591
30 545 30 36 915 663
33 603 33 40 1,020 738
35 676 35 42 1,050 823
36 726 36 44 1,235 912
40 958 40 48 1,585 1,134
42 1,042 42 50 1,750 1,343
48 1,223 48 60 2,100 1,525
52 1,510 52 64 2,612 1,810
56 1,704 56 68 2,940 2,148
60 1,914 60 72 3,273 2,353
64 2,283 64 77 3,790 2,651
66 2,405 66 82 4,285 2,800
72 2,817 72 88 4,798 3,332
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
