SeaBoss

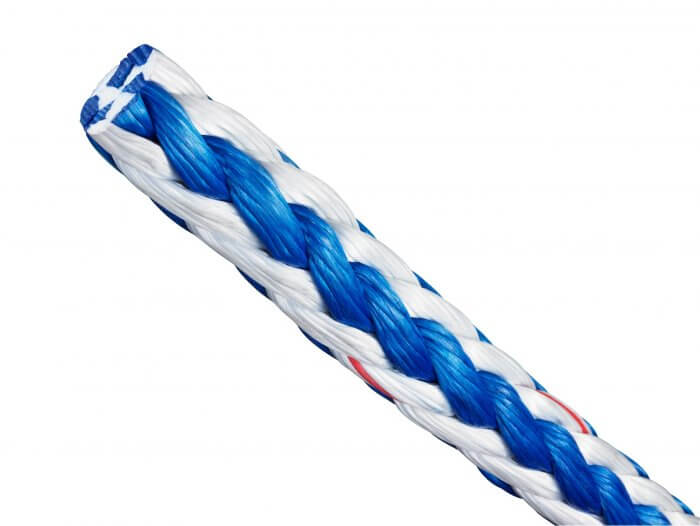

SeaBoss is an enhanced version of our flagship product Endura 12 which is comprised of Dyneema® SK78 fiber; yielding a rope that is high strength, low stretch, has ultra-low levels of creep, and is easily spliced.

Farbvarianten
  • Blue

  •  Gray

  • Green

  •  Red

  • White

  • Orange

  • White-Blue

SeaBoss is coated with our proprietary high lubricity coating specially formulated to thrive in the harshest of conditions and to meet the demands of the most difficult applications including most notably CBOS (cyclical bending over sheave. This combination of the strength and weight properties of Endura 12 and it’s propriety coating makes SeaBoss a more durable line resulting in an extended service life.

Features

  • Excellent abrasion resistance
  • Easy to inspect
  • Maximum strength to weight ratio
  • Extremely low stretch
  • Easy to splice
  • Floats
  • UV stable

Our SeaBoss can be used for following applications:

  • Replacement steel for cable
  • Tug boat tow lines
  • Face and wing wires
  • Winch lines
  • Tug pendant and main line
  • Helicopter long lines
  • Underground pulling lines
  • Slings
  • Trawl line
  • Wire rope replacement
Durchmesser Durchmesser Umfang Gewicht Gewicht Breaking Strength Breaking Strength
[mm] [inch] [inch] [g/m] [lbs./100'] [Minimum lbs.] [Average lbs.]
6 1/4 3/4 25.30 1.70 7,95 9,70
8 5/16 1,00 34.20 2.55 13,30 14,50
10 3/8 1 1/8 50.60 3.40 16,80 18,80
11 7/16 1 1/4 59.50 4.20 22,20 24
12 1/2 1 1/2 87.80 6.15 32,10 34,30
14 9/16 1 3/4 102.70 7.20 39,50 42
16 5/8 2 135.40 10.10 50,80 58
18 3/4 2 1/4 219.30 14.74 58 67
22 7/8 2 3/4 272.30 18.80 85 97,50
24 1,00 3 348.10 23.40 98,10 114
28 1 1/8 3 1/2 461.20 31.00 133 148
30 1 1/4 3 3/4 544.50 36.60 149 171
33 1 5/16 4 602.60 40.50 166 190
34 1 3/8 4 1/8 675.50 45.40 185 212
36 1 1/2 4 1/2 726.00 48.80 205 228
40 1 5/8 5 958.10 64.40 255 283
42 1 3/4 5 1/2 1041.50 70.00 302 335
48 2 6 1223.00 82.20 343 381
56 2 1/4 7 1703.50 114.50 483 537
60 2 1/2 7 1/2 1913.30 128.60 529 588
64 2 5/8 8 2282.30 153.40 596 675
72 3 9 2816.40 189.30 749 856
76 3 1/8 9 1/2 3421.90 230.00 828 920
Rechtschreibfehler und technische Änderungen vorbehalten. Die angegebenen Daten sind Richtwerte ohne Gewährleistung und Garantie. Für Fragen dazu stehen wir Ihnen jederzeit zur Verfügung.
