Ocean 3000 XG
General Purpose Ropes
High strength fiber rope for general use made of UHMWPE.
Specifications
Braid: 12
Material: UHMWPE
Made in
Color Images
Red
Blue
Grey
Black

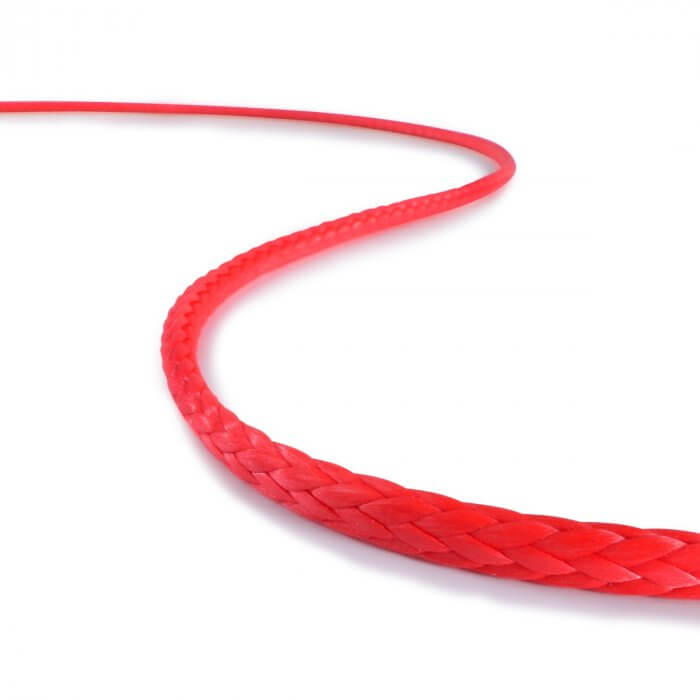

Ocean 3000 is a high strength fiber rope, made of UHMWPE fibers.
It offers high breaking strength, has a high reverse bending fatigue strength, and a long service life. UHMWPE fibers are distinguished by their extremely high strength in comparison to their weight. Other characteristics of this high-end and very versatile fiber include: maximum abrasion resistance, low elongation, no water absorption, buoyancy and good UV resistance.
Features:
- High strength UHMWPE fiber
- High reverse bending fatigue strength
- No water absorption
- Maximum abrasion resistance
| Diameter [mm] | Diameter [inch] | Weight [g/m] | Weight [lbf/100] | Min. breaking strength, free length [daN] | Min. breaking strength, free length [lbf] |
|---|---|---|---|---|---|
| 2 | 3/32 | 2 | 0.14 | 400 | 900 |
| 3 | 1/8 | 5 | 0.34 | 800 | 1,800 |
| 4 | 5/32 | 8 | 0.54 | 1 600 | 3,600 |
| 5 | 3/16 | 11 | 0.75 | 2 300 | 5,175 |
| 6 | 1/4 | 17 | 1.15 | 3 200 | 7,200 |
| 8 | 5/16 | 28 | 1.90 | 4 500 | 10,125 |
| 10 | 3/8 | 42 | 2.85 | 7 100 | 15,975 |
| 12 | 1/2 | 54 | 3.66 | 9 500 | 21,375 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
