NYTech

Static ropes

Special 3-strand rope for fire fighters and hot environments.

Specifications

Braid: 3
Material: Nylon/Technora®
Standard: NFPA 1983

Made in

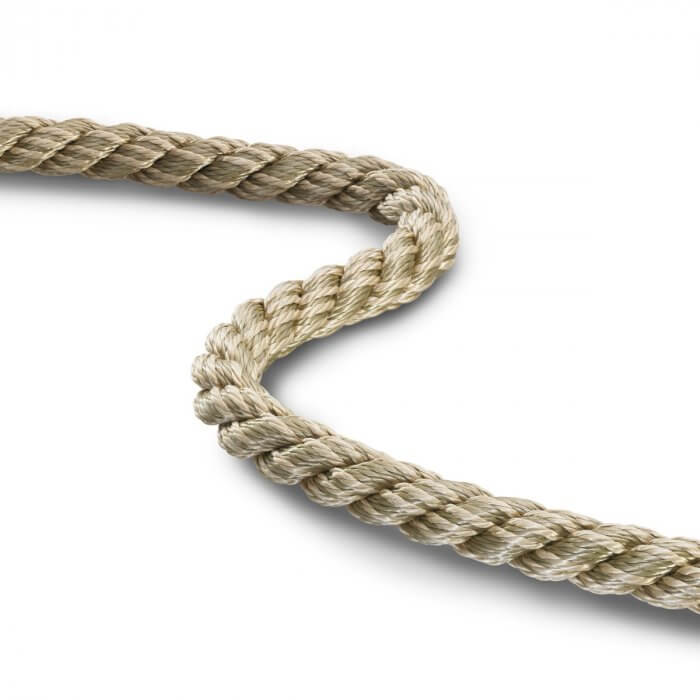

NYTech is a 3-strand left handed lay rope made of a Nylon/Technora® blend.

This life safety certified rope is similar in construction to the rope used for decades in the Tri-State area and by greater New York City Fire Departments. Due to the portion of Technora®, this enhanced version provides for far greater heat and cut resistance. It is perfectly suited for a longer exposure time when Fire Fighters need it most.

Features:

  • Left hand lay rope
  • Nylon/Technora® blend
  • Enhanced heat resistance
  • Excellent cut resistance
Diameter
[mm]
Diameter
[inch]
Weight
[g/m]
Weight
[lbf/100]
Min. breaking strength, free length
[daN]
Min. breaking strength, free length
[lbf]
14 9/16 141.30 9.50 4 000 9 000
Standard Diameter
[mm]
Diameter
[inch]
Elongation at 1.35 kN
[%]
Elongation at 2.7 kN
[%]
Elongation at 4.4 kN
[%]
Approved class
NFPA 1983:2017 14 9/16 3.20 6 8 Laid Lifesaving Rope
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
