Rope constructions

A special stabilization process and a solid, balanced construction produce a durable, long-lasting, flexible and easy-to-handle rope that won’t harden with age.

A supple construction that absorbs twist and does not kink. This simple construction provides great ease of splicing.

A braided core inside a braided cover produces an easy-to-handle rope that is strong and very durable. Since the rope consists of two individual parts, it is possible to combine different fibers to create ropes merging specific characteristics of different raw materials. For example, a high tensile core with a heat resistant cover.

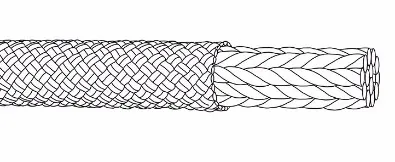

Features a 32carrier, 40carrier or 48carrier sheath that protects the core from grit and particle absorption. The sheath is designed to generate some grab and friction for rappelling and lowering operations. The core is comprised of bundles of fiber that are loosely twisted. These bundles help to keep the rope firm yet flexible.

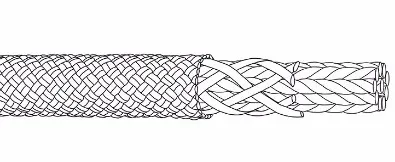

The unique and patented PROTECT technology includes a revolutionary aramid intermediate sheath to provide unmatched resistance to cuts, abrasion and wear.

Twill Pattern Technology (TPT) is a special cover design resulting in a twill pattern (under two over one) or weave. This design results in a cover/sheath that has a smaller profile in cross-section than plain pattern sheaths – the more traditional-looking climbing rope cover/sheath. For the climber, this means improved abrasion resistance over abrasive surfaces due to the smaller profile, as well as significantly reduced drag in carabiners and mechanical devices.

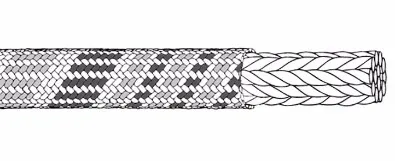

Bi-Pattern ropes change pattern at their midpoint to permanently mark the center of the rope in a way that is immediately visible to the climber. This change in pattern is generated by repositioning the bobbins (spools) during the braiding process. As no fibers are cut, tied or spliced and no pigments or other chemicals are applied to mark the middle points, Bi-Patterns are the safest form of mid-point marking available for climbing ropes.

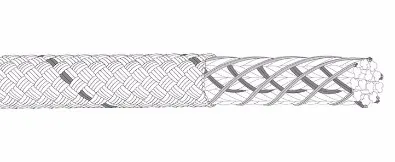

PLATINUM^® is the name of a braiding technology. with a mechanical and durable connection between the core and the cover. Moreover, PLATINUM^® connects parallel cores to one another, thus relieving the load the previously heavily loaded outer yarns are exposed to.

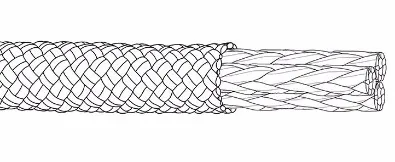

This type of rope structure is characterized by a 32-plait braided cover and three braided cores. Its design makes this rope particularly well suited for use around sheaves. Furthermore, it provides above average breaking forces in combination with various types of hardware.
