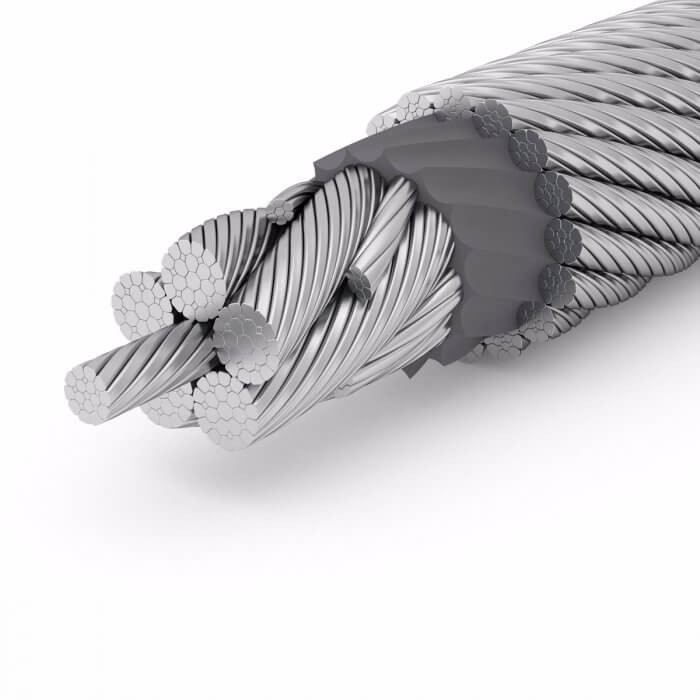

EVOLUTION TK18
EVOLUTION TK18 combines all characteristics required of a rotation resistant high performance hoist rope for heavy lift applications.
Specifications
Ordinary lay or lang’s lay, right or left lay
16 x K17F - EPIWRC (K), RCN 27
Pro Active lubrication
✔Multilayer spooling
✔PLASTFILL®
✔SUPERFILL®
EVOLUTION TK18 has been used successfully for years as a hoist rope for heavy lift tasks aboard ships and on floating cranes, in offshore areas and harbors. Especially its reliability faced with enormous breaking forces and its perfect torsional characteristics make it to your ideal choice if you are looking for operation without trouble and highest safety.
Benefits of EVOLUTION TK18:
- Long risk-free lifetime thanks to the permanent lubrication of its core provided by the PLASTFILL®
- Highest operational safety due to the high actual breaking forces thanks to the SUPERFILL compaction technology and the excellent torsional characteristics; also in combination with larger fleet angles
- Extremely resistant to corrosion and other external environmental influences due to the PLASTFILL® impregnation between the core and the outer strands
- High wear resistance due to the compacted rope surface and the bigger wires in the outer strands
- Perfect spooling characteristics due to the rope construction's good dimensional stability under lateral pressure and high flexibility
| Product name | Diameter [mm] | Diameter [inch] | Weight in air [kg/m] | Weight in air [lbf/ft] | Weight submerged [kg/m] | Minimum breaking force at a tensile strength of 1770 N/mm² [kN] | Minimum breaking force at a tensile strength of 1770 N/mm² [lbf] | Minimum breaking force at a tensile strength of 1960 N/mm² [kN] | Minimum breaking force at a tensile strength of 1960 N/mm² [lbf] |
|---|---|---|---|---|---|---|---|---|---|
| EVOLUTION TK 18 | 44.45 | 1 3/4 | 9.48 | 6.36 | 7.89 | 1 641 | 368 911 | 1 817 | 408 478 |
| EVOLUTION TK 18 | 46 | 10.24 | 6.87 | 8.54 | 1 758 | 395 214 | 1 960 | 440 626 | |
| EVOLUTION TK 18 | 48 | 11.12 | 7.46 | 9.27 | 1 914 | 430 284 | 2 119 | 476 370 | |
| EVOLUTION TK 18 | 50 | 12.40 | 8.32 | 10.39 | 2 076 | 466 703 | 2 299 | 516 836 | |
| EVOLUTION TK 18 | 50.80 | 2 | 12.98 | 8.71 | 10.90 | 2 143 | 481 766 | 2 374 | 533 696 |
| EVOLUTION TK 18 | 52 | 13.61 | 9.13 | 11.43 | 2 246 | 504 921 | 2 487 | 559 100 | |
| EVOLUTION TK 18 | 54 | 2 1/8 | 14.48 | 9.72 | 12.13 | 2 422 | 544 487 | 2 682 | 602 938 |
| EVOLUTION TK 18 | 56 | 15.28 | 10.25 | 12.75 | 2 605 | 585 627 | 2 884 | 648 349 | |
| EVOLUTION TK 18 | 58 | 16.80 | 11.27 | 14.09 | 2 794 | 628 116 | 3 094 | 695 559 | |
| EVOLUTION TK 18 | 60 | 2 3/8 | 17.92 | 12.02 | 15.02 | 2 990 | 672 179 | 3 311 | 744 342 |
| EVOLUTION TK 18 | 62 | 18.90 | 12.68 | 15.81 | 3 193 | 717 815 | 3 536 | 794 924 | |
| EVOLUTION TK 18 | 64 | 20.43 | 13.71 | 17.13 | 3 402 | 764 800 | 3 767 | 846 855 | |
| EVOLUTION TK 18 | 66 | 21.14 | 14.18 | 17.63 | 3 618 | 813 359 | 4 006 | 900 585 | |
| EVOLUTION TK 18 | 68 | 22.44 | 15.06 | 18.72 | 3 841 | 863 491 | 4 253 | 956 112 | |
| EVOLUTION TK 18 | 70 | 2 3/4 | 23.91 | 16.04 | 19.97 | 4 070 | 914 972 | 4 507 | 1 013 214 |
| EVOLUTION TK 18 | 72 | 25.40 | 17.04 | 21.23 | 4 306 | 968 027 | 4 768 | 1 071 889 | |
| EVOLUTION TK 18 | 74 | 26.90 | 18.05 | 22.49 | 4 548 | 1 022 431 | 5 037 | 1 132 363 | |
| EVOLUTION TK 18 | 76 | 3 | 28.07 | 18.83 | 23.42 | 4 798 | 1 078 633 | 5 313 | 1 194 410 |
| EVOLUTION TK 18 | 78 | 29.80 | 20 | 24.90 | 5 053 | 1 135 960 | 5 596 | 1 258 031 | |
| EVOLUTION TK 18 | 80 | 31.40 | 21.07 | 26.25 | 5 316 | 1 195 084 | 5 887 | 1 323 450 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
