Endura Braid
Endura Braid is an allround safety and rescue rope. It has high tensile strength and low stretch.
Specifications
Core: UHMWPE
Cover: polyester
Braid: 24
Color Images
Black
All Diameters
Green Fleck
All Diameters
Blue Fleck
All Diameters
Red Fleck
All Diameters
Solid Green
All Diameters
Solid Blue
All Diameters
Solid Red
All Diameters
White
All Diameters
-
Black
All Diameters
-
Green Fleck
All Diameters
-
Blue Fleck
All Diameters
-
Red Fleck
All Diameters
-
Solid Green
All Diameters
-
Solid Blue
All Diameters
-
Solid Red
All Diameters
-
White
All Diameters

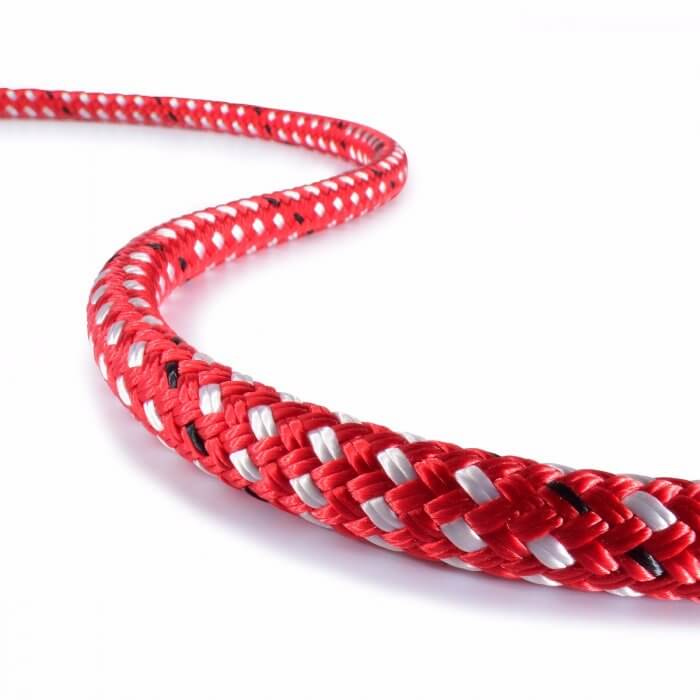

Endura Braid is an allround rope that is also ideal for use as a winch rope. This safety and rescue rope features a double braid with an UHMWPE core and polyester cover.
Endura Braid boasts extremely high strength and low stretch. Its – considering the diameter – comparatively high strength makes it possible to use smaller diameter versions of this rope. This can be an advantage when the winch drum takeup length is a limiting factor.
In the case of Endura Braid, eyes can be spliced on one or both ends. They are available with the following thimble options:
- galvanized
- heavy duty galvanized (for high loads)
- bronze
- stainless steel
| Diameter [mm] | Diameter [inch] | Weight [g/m] | Weight [lbf/100] | Min. breaking strength, free length [daN] | Min. breaking strength, free length [lbf] |
|---|---|---|---|---|---|
| 4 | 5/32 | 12.70 | 0.85 | 710 | 1 600 |
| 5 | 3/16 | 16.4 | 1.10 | 1 245 | 2 800 |
| 6 | 1/4 | 26.8 | 1.80 | 1 865 | 4 200 |
| 8 | 5/16 | 44.6 | 3 | 3 110 | 7 000 |
| 10 | 3/8 | 56.50 | 3.80 | 3 955 | 8 900 |
| 11 | 7/16 | 80.3 | 5.40 | 5 735 | 12 900 |
| 12 | 1/2 | 98.2 | 6.60 | 8 940 | 20 100 |
| 14 | 9/16 | 128.0 | 8.60 | 10 230 | 23 000 |
| 16 | 5/8 | 175.6 | 11.80 | 12 010 | 27 000 |
| 19 | 3/4 | 235.1 | 15.80 | 15 125 | 34 000 |
| 22 | 7/8 | 311.0 | 20.90 | 21 575 | 48 500 |
| 25 | 1.00 | 403.2 | 27.10 | 25 800 | 58 000 |
| 28 | 1 1/8 | 511.8 | 34.40 | 38 255 | 86 000 |
| 32 | 1 1/4 | 586.2 | 39.40 | 37 810 | 85 000 |
