Crane Kit

Endura Braid slings for rigging applications

Our Crane Kit was developed to make cutting down trees and similar items step by step by means of cranes safer, more efficient, and stable.

Specifications

Standard: ASME B30.9a-2014
Core: polyester
Cover: UHMWPE

Made in

Color Images

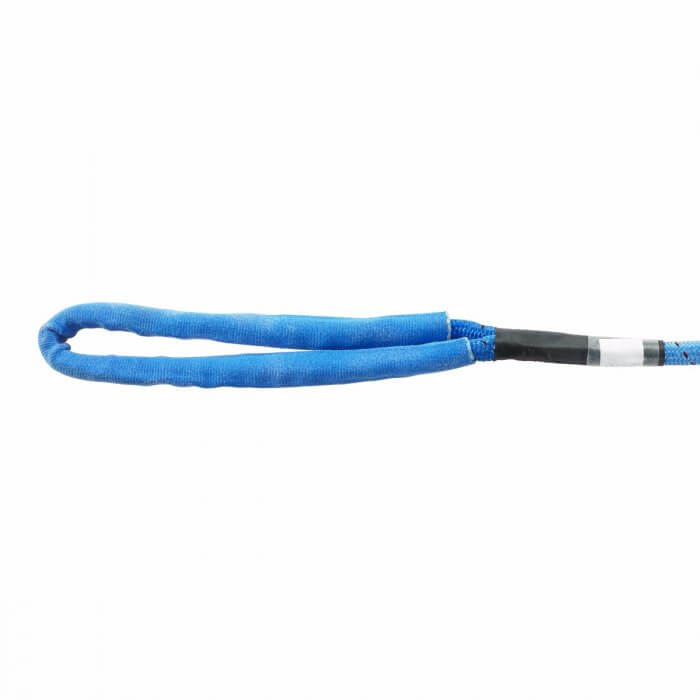

  • Blue

    16 mm

  • Orange

    16 mm

The Crane Kit from TEUFELBERGER is a set of Endura Braid slings. It is suited for rigging applications that have to be carried out by means of a crane.

 Each sling consists of a 15.9 mm Endura Braid line and is characterized by low weight, low stretch, and high strength. Endura Braid is perfect for this type of use because of its good knotability and, whenever necessary, its easy knot releasing properties.

The Crane Kit consists of two orange 6 m slings and one blue 9 m sling. This color coding ensures clear communication between the climber and the crane operator.

Diameter
[mm]
Diameter
[inch]
Length
[m]
Length
[ft]
Rated load, vertical
[daN]
Rated load, vertical
[lbs]
Rated load, choker
[daN]
Rated load, choker
[lbs]
Rated load, basket @ 90°
[daN]
Rated load, basket @ 90°
[lbs]
16 5/8 6 20 4,980 11,200 3,730 8,400 10,000 22,500
16 5/8 9 30 4,980 11,200 3,730 8,400 10,000 22,500
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
